Engineered feature supporting adopt new portable mobile design. for peak operational performance.
Engineered feature supporting transmit sound over a long distance with high intelligibility. for peak operational performance.
Engineered feature supporting support wired and wireless microphones. for peak operational performance.
Transforming conventional environments into dynamic high-resolution digital hubs.
Engineered feature supporting support fm broadcast function. for peak operational performance.
Engineered feature supporting way radio calling function. for peak operational performance.
Configured with power saving controls to decrease general electricity consumption levels.

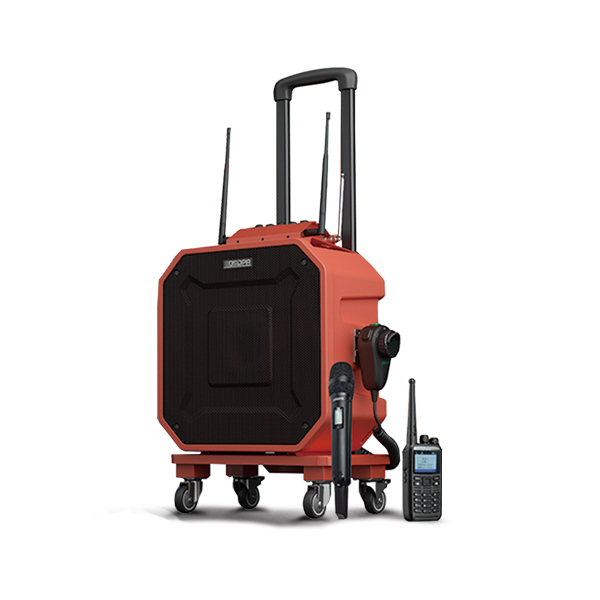

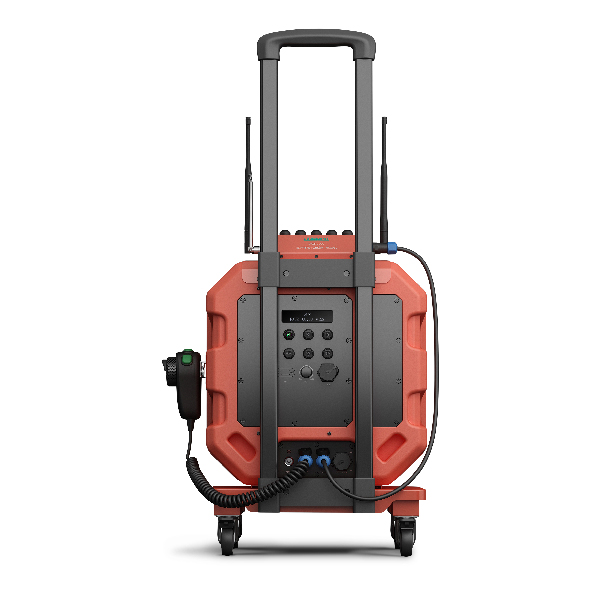

Model | WEP5590 Portable Mobile Emergency PA System | |
Name | Alarm Panel | Host Panel |
Input Sensitivity (Wireless Microphone) | 25mV | —— |
Input Sensitivity (MIC) | —— | 50mV (±5) |
Receiving Sensitivity (FM) (Wireless Microphone) | -95dB | |
Input Sensitivity (USB) | —— | -10dB |
Input Sensitivity (Bluetooth) | —— | -10dB |
Balanced Audio Output | 1000mV (±100) | 1000mV (±100) |
Frequency Response | 200Hz-8kHz (±3dB) | 400Hz-8kHz (±3dB) |
Distortion | ≤1% | ≤1% |
FM Frequency | 87-108 MHz | 87-108 MHz |
Frequency | 410.37-425.37MHz | —— |
Maximum Output Level | 1000mV (±100) | 24.8V |
Two-Way Radio Transmission Distance | 1km (open area) | —— |
Power Supply | 24V | 24V |
Gross Weight | 22KG | |
Net Weight | 15KG | |
Machine Dimensions | 435×230×540mm | |
Package Dimensions | 770×660×380mm |
