DSP107W Pendant Speakers Sound Projector

Dynamic Engineering & Peak Visual Performance

IP65

Outdoor Protection

Sync

Real-Time Control

Solar

Grid Support

Key Advantages

Product Strengths

Elegant Design, 70/100V, 8

Engineered feature supporting elegant design, 70/100v, 8 for peak operational performance.

15W, with multiple terminals

Engineered feature supporting 15w, with multiple terminals for peak operational performance.

Max SPL: 102±2dB

Engineered feature supporting max spl: 102±2db for peak operational performance.

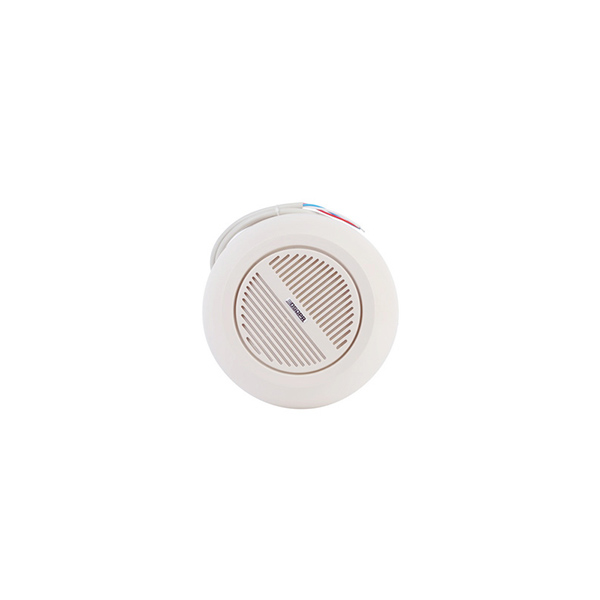

Model Appearance Model Main View

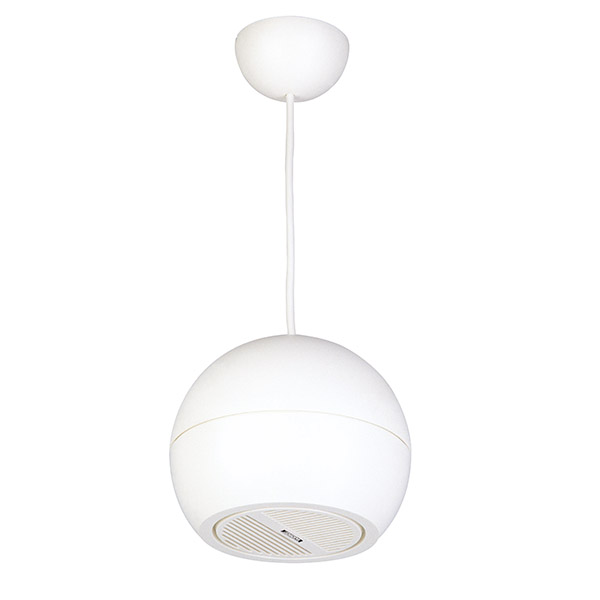

Installation Context Model Context View

Transforming conventional environments into dynamic high-resolution digital hubs.

in 100v/70v transformer

Engineered feature supporting in 100v/70v transformer for peak operational performance.

Wide Freq.Resp.:110Hz

Engineered feature supporting wide freq.resp.:110hz for peak operational performance.

Sustainable Saving

Configured with power saving controls to decrease general electricity consumption levels.

Model Visuals

DSP107W Pendant Speakers Sound Projector Showcase

Product Overview

Description

The DSP107 is a Pendant Sound Projector with a 70v/100v transformer built in. The 70v/100v transmission is realized in a high-voltage, low-current mode, which makes longer distance transmission and parallel connection of multiple loudspeakers possible. This speaker is designed of wide frequency r...

Product Line Parameters

Technical Specifications

MODEL	DSP107
Rated Power	15W
Line Voltage	70/100V
Sensitivity(1M,1W)	91±2dB
MAX SPL(1M)	102±2dB
Freq.Resp	110Hz-18kHz
Weight	2kg
